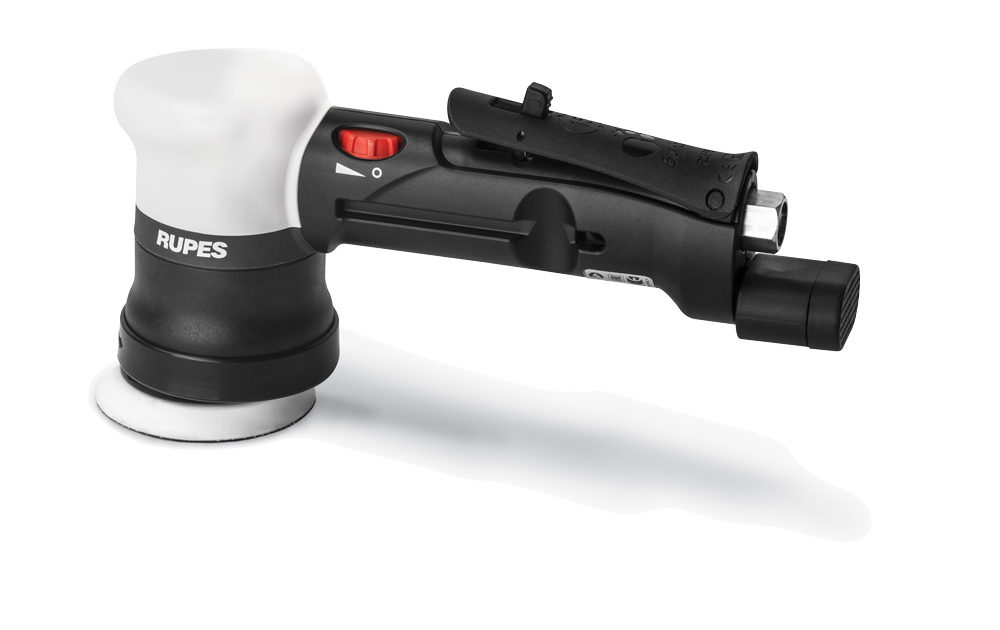

LTA 75 Triple-Action Mini

Triple-Action Random Orbital Polisher

Part of the all-new Triple Action family of BigFoot tools, the LTA 75 is a compact pneumatic polisher for edgework and compact spaces that uses an innovative epicyclic gear-set to produce torque and consistency of movement never realized in a pneumatic tool previously. Ideal for a variety of industries including industrial, marine, aviation, automotive detailing, and AOEM.

TECHNICAL DATA
ø Backing Pad	mm-in	75 – 3″
ø Orbit	mm-in	15 – 19/32″
Working Pressure	bar – PSIG	6.2 – 90
Air Consumption Max	l/min – CFM	380 – 13.4
R.P.M.		0 – 6,000
Weight	kg-lbs	0.90 – 1.15
Speed Regulation		•
Spindle Thread		M6-F
Backing Pad Supplied		990.007

HIGH TORQUE EFFICIENCY

The innovative epicyclic gear reduction system of the LTA 75 converts the typical high-speed RPM of the air motor into lower-speed, high-torque output. The result is a more homogeneous output which reduces the variable of operator input, ultimately increasing the probability for a consistent finishing result.

SPEED CONTROL

The speed control is conveniently located just above the actuator lever on the handle of the LTA 75. This allows for easy adjustment of the tools speed without interruption of the operation to maximize work efficiency.

NOISE REDUCTION

In addition to being an air outlet, the device also acts as a silencer. Mounted near the air connection on the lower segment of the tool this double silencer is extremely effective at deadening the noise generated by the flow of compressed air. This is especially beneficial in shop environments where many pneumatic tools may run simultaneously or operators may use the tools for extended periods of time.
